★ Product description:

The TMS320C6678 multi-verification point and floating point digital signal processor based on TI Keystone multi-core architecture integrates 8 C66X CorePac DSPs, each core runs at a frequency of 1.0 to 1.25GHz, supporting high-performance signal processing applications, which has the advantages of high efficiency, high energy, and easy to use.

ICETEK-C6678-KB core application board, TI TMS320C6678 DSP as the main processor, onboard DDR3, NOR FLASH, NAND FALSH and other memory, expand C6678 data pin, for the user's early use and later secondary development and design to provide convenience.

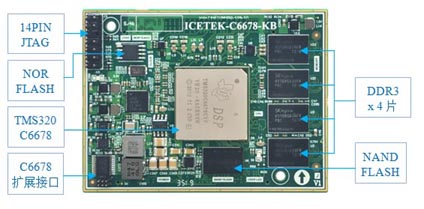

ICETEK-C6678-KB: 8-core digital signal processor core board(图2)

★ Hardware features:

1. Main processor: TMS320C6678

- 8 1.00GHz and 1.25GHz TMS320C66x DSP core subsystems

· 320GMAC/160GFLOP at 1.25GHz

· Each kernel 32KB L1P, 32KB L1D, and 512KB L2

· 4MB shared L2

- Multicore Navigator and Teranet Exchange Matrix -2 TB

- Network coprocessor - packet accelerator, security accelerator

- Two-channel PCIE Gen2- 5 GBAUD full duplex per channel

- Hyperlink -50Gbaud operation, full duplex

- Ethernet MAC subsystem - two SGMII ports, with 10/100/1000 Mbps operation

- 64-bit DDR3 Interface (DDR3-1600) -8 GB addressable storage space

- 16-bit EMIF- Asynchronous SRAM, NAND, and NOR flash support

- UART interface

- I2C interface

- 16 GPIO pins

- SPI interface

- 16 64-bit timers

- 3 PLLs on chip

2. On-board memory DDR3:4GB x 4 pieces

3. On-board memory NAND Flash: 512MB

4. On-board memory Nor Flash: 64MB

5. 14PIN JTAG interface:

- Standard 14PIN JTAG interface, to achieve the debugging simulation of C6678

- Connected to ICETEK series development system:

·ICETEK-XDS100 V2 +

·ICETEK-XDS200U

·ICETEK-XDS560 V2, etc

6. C6678 extension interface:

- Board to board interface: 180PIN x 2 PCS

- Anti-misplacement design ensures correct and stable connection between the core board and the backboard for extended application

- It can be connected to board to board with ICETEK series extended application backboard to obtain a variety of peripheral interfaces including gigabit network, SATA, USB, UART, LCD, etc

- It can be connected with the extended application backboard designed by the user for more peripherals and functional applications

7. Overall dimension: 80mm(L) x 60mm(W)

★ Application fields:

- Industrial automation

- High performance computing systems

- Mission critical systems

- Communication - Audio

- Video infrastructure

- Imaging

- Analysis

- Network

- Media Processing

- Automation and process control, etc
